RMAN-06457

Issue :

Rman active duplicate failed with below error.

RMAN-00571: ===========================================================

RMAN-00569: =============== ERROR MESSAGE STACK FOLLOWS ===============

RMAN-00571: ===========================================================

RMAN-03002: failure of Duplicate Db command at 08/22/2017 11:04:54

RMAN-05501: aborting duplication of target database

RMAN-06457: UNTIL SCN (11106466738406) is ahead of last SCN in archived logs (11106466667595)

script used for duplicate is :

run

{

SET UNTIL SCN 11106466738406;

DUPLICATE DATABASE TO <target_db_SID>

FROM ACTIVE DATABASE

NOFILENAMECHECK;

}

Solution:

Active Database Duplication cannot be used to duplicate a database until a point in time. One has to rely on the backup-based database duplication method if one wants to create a duplicate database until a specific point in time ( a specific time, log sequence or SCN). Furthermore, active duplicate copies data only until the last archived log file in the source database. The contents of the online redologs will not be copied to the duplicate database.

Database upgrade from 11.2.0.3 to 12.1.0.2 Using DBUA (HP-UX Itanium)

PRE- UPGRADE STEPS:

Old ORACLE_HOME = /vac/app/oracle/product/11.2.0.3

New ORACLE_HOME = /vac/app/oracle/product/12.1.0

1. Install the 12.1.0 in a new Home Location using runInstaller.

2. Execute Pre upgrade Information gathering Script:

Copy the Pre-Upgrade Information Tool ( preupgrd.sql & utluppkg.sql ) from the Oracle Database 12.1.0

$ORACLE_HOME/rdbms/admin directory to a directory outside of the Oracle home, such as the temporary directory on your system.

In this case : /vac/orabkup01/preupgrd.sql & /vac/orabkup07/utluppkg.sql

Note : Note that the new preupgrd.sql script replaces the utlu121i.sql script and earlier versions of the Pre-Upgrade Information Tool.

The Pre-Upgrade Information Tool, which now consists of preupgrd.sql and utluppkg.sql.

1. Make sure preupgrd.sql and utluppkg.sql (located in the admin directory of the new installation of Oracle Database 12.1) are accessible while connected to your source database, which is the database to be upgraded.

2. Connect to your source database using an account with DBA privileges and execute the preupgrd.sql script. For more information on the Pre-Upgrade Information Tool, see the Oracle Database Upgrade Guide.

3. Execute Pre Upgrade Script:

Execute preupgrd.sql from where it had been copied in the previous step. Start SQL*Plus and connect to the database instance as a user with SYSDBA privileges. Then run and spool the preupgrd.sql file. Please note that the database should be started using the Source Oracle Home.

$ sqlplus '/ as sysdba' (11g Oracle_HOme)

SQL> spool upgrade_info.log

SQL> @preupgrd.sql

SQL> spool off

4. Pre-Upgrade Checks[Errors]

ERROR: --> Invalid Oracle supplied table data found in your database. Invalid data can be seen prior to the database upgrade or during PDB plug in. This table data must be made valid BEFORE upgrade or plug in.

- To fix the data, load the Preupgrade package and execute the fixup routine.

For plug in, execute the fix up routine in the PDB.

@?/rdbms/admin/utluppkg.sql

SET SERVEROUTPUT ON;

exec dbms_preup.run_fixup_and_report('INVALID_SYS_TABLEDATA')

SET SERVEROUTPUT OFF;

Fix:

SQL> @/vac/app/oracle/product/11.2.0.3/rdbms/admin/utluppkg.sql

Package created.

Package body created.

SQL> SET SERVEROUTPUT ON;

SQL> exec dbms_preup.run_fixup_and_report('INVALID_SYS_TABLEDATA')

**********************************************************************

Check Tag: INVALID_SYS_TABLEDATA

Check Summary: Check for invalid (not converted) table data

Fix Summary: UPGRADE Oracle supplied table data prior to the database upgrade.

**********************************************************************

Fixup Succeeded

**********************************************************************

PL/SQL procedure successfully completed.

SQL> SET SERVEROUTPUT OFF;

SQL> SELECT rpad(u.name,128) TABLENAME, rpad(o.name,128) OWNER,

rpad(c.name,128) COLNAME FROM SYS.OBJ$ o, SYS.COL$ c, SYS.COLTYPE$ t,

SYS.USER$ u

WHERE o.OBJ# = t.OBJ# AND c.OBJ# = t.OBJ# AND c.COL# = t.COL#

AND t.INTCOL# = c.INTCOL# AND BITAND(t.FLAGS, 256) = 256

AND o.OWNER# = u.USER# AND o.OWNER# NOT IN

(SELECT UNIQUE (d.USER_ID) FROM SYS.DBA_USERS d, SYS.REGISTRY$ r

WHERE d.USER_ID = r.SCHEMA# and r.NAMESPACE='SERVER');

no rows selected

Note : Refer Metalink Doc ID 2009405.1 for more information on this error and fix.

5.Pre-Upgrade Recommendations

Please gather dictionary statistics 24 hours prior to upgrading the database. To gather dictionary statistics execute the following command while connected as SYSDBA:

EXECUTE dbms_stats.gather_dictionary_stats;

6. Check for the integrity of the source database:

If the dbupgdiag.sql script reports any invalid objects, run $ORACLE_HOME/rdbms/admin/utlrp.sql (multiple times) to validate the invalid objects in the

====>> PRE-UPGRADE RESULTS for <<====

ACTIONS REQUIRED:

1. Review results of the pre-upgrade checks:

/vac/app/oracle/cfgtoollogs/ /preupgrade/preupgrade.log

2. Execute in the SOURCE environment BEFORE upgrade:

/vac/app/oracle/cfgtoollogs/ /preupgrade/preupgrade_fixups.sql

3. Execute in the NEW environment AFTER upgrade:

/vac/app/oracle/cfgtoollogs/ /preupgrade/postupgrade_fixups.sql

**********************************************************************

************ Summary ************

0 ERRORS exist in your database.

3 WARNINGS that Oracle suggests are addressed to improve database performance.

1 INFORMATIONAL message that should be reviewed prior to your upgrade.

After your database is upgraded and open in normal mode you must run

rdbms/admin/catuppst.sql which executes several required tasks and completes

the upgrade process.

You should follow that with the execution of rdbms/admin/utlrp.sql, and a

comparison of invalid objects before and after the upgrade using

rdbms/admin/utluiobj.sql

If needed you may want to upgrade your timezone data using the process

described in My Oracle Support note 1509653.1

***********************************

Run utlrp.sql run validate invalid objects in Database before upgarde.

$ cd $ORACLE_HOME/rdbms/admin

$ sqlplus "/ as sysdba"

SQL> @utlrp.sql

7. Check that National Characterset:

Check that National Characterset (NLS_NCHAR_CHARACTERSET) is UTF8 and AL16UTF16.

select value from NLS_DATABASE_PARAMETERS where parameter = 'NLS_NCHAR_CHARACTERSET';

If this is UTF8 or AL16UTF16 then no action is needed.

If is not UTF8 or AL16UTF16 then refer the following article

SQL> select value from NLS_DATABASE_PARAMETERS where parameter = 'NLS_NCHAR_CHARACTERSET';

VALUE

----------------------------------------

AL16UTF16

8. Ensure that no files need media recovery:

Sql> SELECT * FROM v$recover_file;

9. Set New ORACLE_HOME

export ORACLE_HOME= /vac/app/oracle/product/12.1.0

export PATH=$ORACLE_HOME/bin:$PATH

Start Database Upgrade assistant to upgrade database.

[ /vac/app/oracle/product/12.1.0/bin ]

nh1d0t04:SID= =>./dbua

Select target database oracle home and SID to be upgrade.

Database SID upgraded below à

Select ‘Ugrade Oracle Database’ if upgrade from same location or select the other if you want to move Oracle home.

Since below warnings can be fixed post-upgrade ignored here. Ignore if not necessary to address or else take necessary action.

Select parallelism for upgrade/Invalid objects parallelism.

Also Upgrade Time zone Date, this is recommended by oracle to upgrade. If you check below box for Time Zone upgrade, it’ll upgrade from version 14 to 18. If you forget to check box during upgrade, we can do it after the upgrade manually. Check Oracle Metalink for steps to update time zone manually.

Select if you want to configure OEM during upgrade.

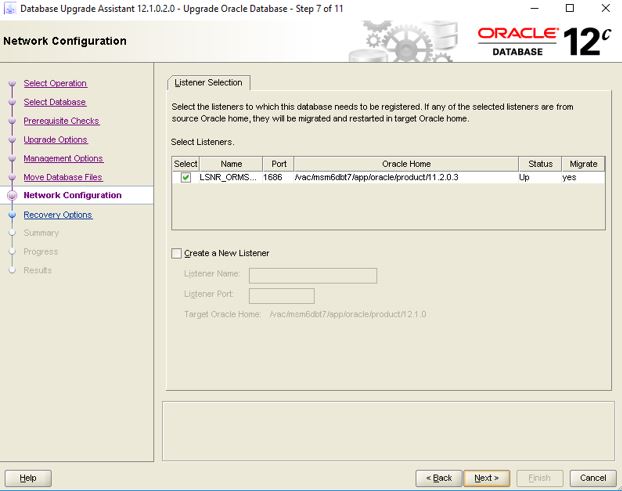

Select if you want to upgrade the existing 11g listener or create new one using below options.

Upgrade finished successfully.

POST Upgrade VALIDATION:

Setlines 200

SQL> select * from v$version;

BANNER CON_ID

-------------------------------------------------------------------------------- ----------

Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production 0

PL/SQL Release 12.1.0.2.0 - Production 0

CORE 12.1.0.2.0 Production 0

TNS for HPUX: Version 12.1.0.2.0 - Production 0

NLSRTL Version 12.1.0.2.0 - Production 0

SQL> column COMP_NAME format a35;

column VERSION format a10;

column status format a10;

SQL> select COMP_NAME, VERSION,status from dba_registry;

COMP_NAME VERSION STATUS

----------------------------------- ---------- ----------

Oracle Database Catalog Views 12.1.0.2.0 VALID

Oracle Database Packages and Types 12.1.0.2.0 VALID

Oracle Workspace Manager 12.1.0.2.0 VALID

JServer JAVA Virtual Machine 12.1.0.2.0 VALID

Oracle XDK 12.1.0.2.0 VALID

Oracle Database Java Packages 12.1.0.2.0 VALID

Oracle XML Database 12.1.0.2.0 VALID

col SOURCE_VERSION for a40

col TARGET_VERSION for a40

set lines 200

SELECT to_char(action_time, 'DD-MON-YYYY HH:MI:SS AM') upgrade_date,comments source_version, version Target_Version FROM dba_registry_history WHERE action = 'UPGRADE';

UPGRADE_DATE SOURCE_VERSION TARGET_VERSION

----------------------- ---------------------------------------- ----------------------------------------

17-MAY-2009 01:07:00 AM Upgraded from 10.2.0.3.0 10.2.0.4.0

31-JAN-2018 12:54:45 PM Upgraded from 10.2.0.4.0 11.2.0.3.0

DBA_REGISTRY_HISTORY Does Not Get Updated on Database Upgraded to 12.1.0.2 (Doc ID 1941383.1)

Note -: Create New Listener from new oracle home and register database with New Listener.

Tuesday, August 15, 2017

ORA-02024: database link not found (Cannot drop a database link after changing the global_name)

APPLIES TO:

Oracle Database - Enterprise Edition - Version 9.2.0.6 and later
Information in this document applies to any platform.
***Checked for relevance on 14-Nov-2014***

SYMPTOMS

Not able to drop a database link after changing the global_name of the database

Earlier global_name had did not have domain name attached to it.

The newly added global_name has a domain name attached to it.

When trying to drop the database link after this change throws the following error

ORA-02024: database link not found

But database link is present and the query on user_db_links displays the value

Example:

SQL> select * from global_name;

GLOBAL_NAME
---------------------------------------------------------
DB10GR2

SQL> create database link l1 connect to scott identified by tiger;

Database link created.

SQL> select db_link from user_db_links;

DB_LINK
---------------------------------------------------------
L1

SQL> alter database rename global_name to DB10GR2.WORLD;

Database altered.

SQL> select * from global_name;

GLOBAL_NAME
---------------------------------------------------------
DB10GR2.WORLD

SQL> drop database link l1;
drop database link l1

ERROR at line 1:
ORA-02024: database link not found

Even if the global_name is changed back to the original value, the same errors
occurs.

CAUSE

Initially when a database is created without domain in the global name, null will used from domain as opposed to .world in earlier releases

Later on when the global_name is altered to contain the domain part also, this domain remains even when the global_name is altered back a name without domain name

Example :-

SQL> select * from global_name;

GLOBAL_NAME
---------------------------------------------------------
DB10GR2

SQL> alter database rename global_name to DB10GR2.WORLD;

Database altered.

SQL> select * from global_name;

GLOBAL_NAME
---------------------------------------------------------
DB10GR2.WORLD

SQL> alter database rename global_name to DB10GR2;

Database altered.

SQL> select * from global_name;

GLOBAL_NAME
---------------------------------------------------------
DB10GR2.WORLD

The only option left to correct this is to update the base table props$

SOLUTION

There are two solutions:

1. Update sys.link$ and rename the name column to make it match so that the command to drop public database link works.

1.1. Take a complete consistent backup of the database

1.2. Execute the following:

$sqlplus /nolog
connect / as sysdba

SQL> update props$ set value$ = '<globalname without domain>' where name ='GLOBAL_DB_NAME';

SQL>commit;

1.3 Drop the database link:

1.3.1. Connect as the schema user that owns the DBLINK and try to drop it.

If you still get ORA-2024: database link not found , that means the domain name is in your cache and needs to be cleared.

1.3.2. Flush shared pool thrice and retry drop database link.

alter system flush SHARED_POOL;
alter system flush SHARED_POOL;
alter system flush SHARED_POOL;

1.3.3. If step b doesn't help, you need to bounce your database and try to drop the database link.

1.3.4. Once the database link is dropped, the global_name can be changed back to the desired name containing domain part using the alter database rename global_name statement

2. The second solution consists on deleting the database link directly from sys.link$:

2.1. Take a complete consistent backup of the database or use CTAS can be used to backup sys.link$:

$sqlplus /nolog
connect / as sysdba

SQL> create table backup_link$ as select * from sys.link$:

2.2. Delete the DBLINK as follows:

$sqlplus /nolog
connect / as sysdba

SQL> delete sys.link$ where name='db_link_name>';

SQL>commit;

2.3. Verify if the operaion s correctly proceeded:

select db_link, username, host from user_db_links;

This above document has been taken from the Oracle Metalink Doc ID 382994.1

Monday, August 14, 2017

ORA-09968 error when tried to start standby database

Issue :

Below error reported in alert log when tried to start physical standby database.

Error:

Tue Aug 13 03:33:12 2017
sculkget: failed to lock /vac/database/app/oracle/11.2.0.4/dbs/lkORCL exclusive
sculkget: lock held by PID: 21604
ORA-09968: unable to lock file
HPUX-ia64 Error: 13: Permission denied
Additional information: 21604
ORA-1102 signalled during: alter database mount standby database

Solution:

Remove 'lkORCL' file or rename it and restart the database. It will automatically created when database restarts.

mv /vac/database/app/oracle/11.2.0.4/dbs/lkORCL lkORCL_old

Database started successfully after that.

Refer oracle metalink Doc ID 467251.1 for more information.

Thursday, August 10, 2017

Oracle Database Patching : Patch 20760997 - Database Patch Set Update 11.2.0.3.15 (Includes CPUJul2015)

Patch Information:

Patch Set Update (PSU) patches are cumulative. That is, the content of all previous PSUs is included in the latest PSU patch.

To install the PSU 11.2.0.3.15 patch, the Oracle home must have the 11.2.0.3.0 Database installed. Subsequent PSU patches can be installed on Oracle Database 11.2.0.3.0 or any PSU with a lower 5th numeral version than the one being installed.

This patch is Data Guard Standby-First Installable. See My Oracle Support Document 1265700.1 Oracle Patch Assurance - Data Guard Standby-First Patch Apply for details on how to remove risk and reduce downtime when applying this patch.

Prerequisites for patching:

Database : 11.2.03
OS : HP-UX Itanium 64 Bit

Login to Oracle meta-link support.

Download patch as mentioned below:

Goto OPatch directory and check for applied patches.

Cd $ORACLE_HOME/OPatch

opatch lsinventory

Check opatch version:

Cd $ORACLE_HOME/OPatch

opatch -v

You must use the OPatch utility version 11.2.0.3.0 or later to apply this patch. Oracle recommends that you use the latest released OPatch version for 11.2, which is available for download from My Oracle Support patch 6880880 by selecting the 11.2.0.0.0 release.

For information about OPatch documentation, including any known issues, see My Oracle Support Document 293369.1 OPatch documentation list.

Follow below metalink ID to install latest version of OPatch.

How To Download And Install The Latest OPatch(6880880) Version (Doc ID 274526.1)

After installing latest opatch:

check oraInst.loc file pointing to your current $ORACLE_HOME or not.

[ /vac/msm6dbs1/app/oracle ]

Host:SID=SID=>cat /var/opt/oracle/oraInst.loc

inventory_loc=/vac/msm6dbs1/app/oracle/oraInventory

inst_group=msm6dbs1

check free space on $ORACLE_HOME

Patching main steps:

unzip the patch

unzip p20760997_112030_HPUX-IA64.zip

In my case below is patch location

Patch Location: /vac/msm6dbs1/app/oracle/20760997

cd $ORACLE_HOME/OPatch

Invoke opatch apply command with patch location as mentioned below.

opatch apply /vac/msm6dbs1/app/oracle/20760997

After Patching output of ‘opatch lsinventory’ as mentioned below.

Below is the full output:

[ /vac/msm6dbs1/app/oracle/product/11.2.0.3/OPatch ]

nh1d0t21:SID=SID=>opatch lsinventory

Oracle Interim Patch Installer version 11.2.0.3.16

Oracle Home : /vac/msm6dbs1/app/oracle/product/11.2.0.3

Central Inventory : /vac/msm6dbs1/app/oracle/oraInventory

from : /vac/msm6dbs1/app/oracle/product/11.2.0.3/oraInst.loc

OPatch version : 11.2.0.3.16

OUI version : 11.2.0.3.0

Log file location : /vac/msm6dbs1/app/oracle/product/11.2.0.3/cfgtoollogs/opatch/opatch2017-06-12_15-14-11PM_1.log

Lsinventory Output file location : /vac/msm6dbs1/app/oracle/product/11.2.0.3/cfgtoollogs/opatch/lsinv/lsinventory2017-06-12_15-14-11PM.txt

--------------------------------------------------------------------------------

Local Machine Information::

Hostname:

ARU platform id: 197

ARU platform description:: HP-UX Itanium

Installed Top-level Products (1):

Oracle Database 11g 11.2.0.3.0

There are 1 products installed in this Oracle Home.

Interim patches (1) :

Patch 20760997 : applied on Mon Jun 12 15:02:55 EDT 2017

Unique Patch ID: 18926826

Patch description: "Database Patch Set Update : 11.2.0.3.15 (20760997)"

Created on 11 Jun 2015, 09:33:38 hrs PST8PDT

Sub-patch 20299017; "Database Patch Set Update : 11.2.0.3.14 (20299017)"

Sub-patch 19769496; "Database Patch Set Update : 11.2.0.3.13 (19769496)"

Sub-patch 19121548; "Database Patch Set Update : 11.2.0.3.12 (19121548)"

Sub-patch 18522512; "Database Patch Set Update : 11.2.0.3.11 (18522512)"

Sub-patch 18031683; "Database Patch Set Update : 11.2.0.3.10 (18031683)"

Sub-patch 17540582; "Database Patch Set Update : 11.2.0.3.9 (17540582)"

Sub-patch 16902043; "Database Patch Set Update : 11.2.0.3.8 (16902043)"

Sub-patch 16619892; "Database Patch Set Update : 11.2.0.3.7 (16619892)"

Sub-patch 16056266; "Database Patch Set Update : 11.2.0.3.6 (16056266)"

Sub-patch 14727310; "Database Patch Set Update : 11.2.0.3.5 (14727310)"

Sub-patch 14275605; "Database Patch Set Update : 11.2.0.3.4 (14275605)"

Sub-patch 13923374; "Database Patch Set Update : 11.2.0.3.3 (13923374)"

Sub-patch 13696216; "Database Patch Set Update : 11.2.0.3.2 (13696216)"

Sub-patch 13343438; "Database Patch Set Update : 11.2.0.3.1 (13343438)"

Bugs fixed:

18681866, 13931044, 14318397, 19517437, 20134036, 20134035, 16279211

20134034, 20134033, 12879027, 13499412, 12748240, 16101465, 13566938

12845115, 10625145, 16462834, 13429702, 13399435, 18440047, 13503204

13419660, 14191508, 14781609, 13092220, 13035804, 13812031, 14609690

14383007, 13369579, 11732473, 7509451, 16524926, 19358317, 12925089

12595606, 13804294, 14138130, 14226599, 18641419, 10256843, 16694777

14668670, 12620823, 13072654, 13612575, 13528551, 15853081, 13914613

13911821, 14459552, 14275605, 9095696, 13427062, 13918644, 16231699

13370330, 13063120, 13923374, 13903046, 13544396, 14258925, 13454210

13483354, 19854461, 12919564, 14098509, 17437634, 14035825, 13424216

16382448, 14237793, 14695377, 13724193, 14230270, 14262913, 13840704

12658411, 13596521, 14003090, 12755231, 14762511, 13705338, 9812682

19554106, 19458377, 13699124, 11708510, 14127231, 12387467, 13786142

12938841, 12983611, 13857111, 18641461, 12917230, 12813641, 14657740

13736413, 14222403, 14406648, 16382353, 13807411, 13911711, 19309466

12312133, 21146680, 9163477, 13686047, 16014985, 14398795, 14472647

12971775, 18641451, 12974860, 12535346, 12796518, 12898558, 16710363

13936424, 13042639, 16314470, 14052871, 9761357, 14637368, 13848402

20657441, 16710753, 13916709, 13397104, 16294378, 13593999, 12571991

15869211, 11071989, 13502183, 16314466, 16314467, 16314468, 16048375

16314469, 14176879, 18139695, 12784406, 13060271, 12345082, 13944971

16347904, 13579992, 18673342, 14207163, 13354082, 13945708, 13912931

13923995, 12940620, 9703627, 13958038, 13719292, 14220725, 13496884

13642044, 8547978, 13719081, 16038929, 16019955, 13732226, 14063280

14063281, 12899768, 12940637, 18740215, 9397635, 13466801, 16794240

20803576, 16794242, 20074391, 16794241, 13596581, 16794244, 16794243

13326736, 13011409, 12411746, 13366202, 14841409, 20334344, 19972198

19972199, 13257247, 13787482, 16794239, 12320556, 19006849, 16794238

20477068, 12594032, 20477069, 12588744, 13467683, 10242202, 12998795

13584130, 19710542, 14512189, 16944698, 13972394, 14121009, 12821418

11868640, 17762296, 13340388, 12857027, 16088176, 13420224, 16450169

17019974, 19211724, 13035360, 14343501, 20477071, 13814739, 14023636

12614359, 15994107, 13038684, 12797620, 18673304, 14755945, 14613900

20004021, 12797765, 13791364, 12847466, 13794550, 15905421, 15996344

13250244, 14369664, 19433747, 19433745, 12964067, 19433746, 11877623

20296213, 13553883, 19699191, 13489024, 12755116, 13477790, 13338048

13146182, 13855490, 13907462, 12693626, 14548763, 17333202, 17333200

12747740, 13099577, 18096714, 14128555, 12873183, 17333203, 13457582

12747437, 16530565, 18673325, 19827973, 13026410, 14188650, 17540582

14508968, 16864562, 13066936, 16362358, 13913630, 12861463, 13098318

13632717, 12582664, 16344871, 17478415, 16272008, 14841558, 12945879

12829021, 13773133, 16563678, 15856660, 14841812, 12894807, 12815057

10182005, 16872333, 13561750, 16844086, 10133521, 14263036, 14390252

13772618, 16850197, 12764337, 12834027, 14038787, 12960925, 14088346

13554409, 15910002, 13484963, 13476583, 13872868, 10263668, 12744759

14588746, 17165204, 12865902, 16212405, 13430938, 15987992, 13737888

13723052, 11840910, 20299010, 13070939, 12976376, 19121548, 14546638

14193240, 13448206, 13559697, 19259446, 14644185, 14273397, 11715084

13616375, 6690853, 13718279, 13332439, 14488943, 13843646, 12395918

13015379, 14489591, 15826962, 13492735, 15901852, 20477440, 13527323

10400244, 13040943, 16279401, 14263073, 13649031, 18522512, 14182835

13632809, 13358781, 14076523, 20558005, 12977562, 13464002, 9797851

13901201, 12772404, 12731940, 13572659, 13810393, 13878246, 16372203

12950644, 17332800, 12912137, 12780983, 17748831, 17748830, 17748833

12959852, 17748832, 13790109, 17748835, 13647945, 17748834, 12718090

13366199, 10110625, 16368108, 13361350, 9547706, 13259364, 12662040

16338983, 14546575, 14207902, 13440516, 16299830, 14198511, 14040433

13871316, 17088068, 13499128, 14546673, 20004087, 14207317, 13685544

13065099, 10359307, 13591624, 14408859, 16902043, 13493847, 19915271

18173595, 18173592, 18173593, 13696216, 13043012, 16747736, 14692762

13605839, 14558880, 14727310, 9873405, 17721717, 12591399, 11883252

15931756, 14799269, 14110275, 13657605, 15981698, 12621588, 13866372

13524899, 17761775, 12588237, 9706792, 16721594, 12612118, 13059165

18262334, 13551402, 12880299, 5144934, 14007968, 13550185, 17752121

17230530, 14062792, 16056266, 14062793, 14062794, 13534412, 14062795

14062796, 14052474, 13840711, 14062797, 13780035, 18325460, 16024441

12780098, 14138823, 13890080, 16761566, 16923127, 9858539, 14053457

15862024, 15862022, 15862023, 15862021, 19197175, 15862020, 13384182

13362079, 16844448, 14571027, 13725395, 12791981, 17865671, 7276499

16619892, 17343514, 15883525, 15841373, 15862019, 14205448, 14163397

15862016, 15862017, 15862018, 13981051, 14664355, 13385346, 20331945

13041324, 14751895, 12797420, 14189694, 14351566, 13001379, 13645875

14095982, 14480676, 13680405, 14480675, 14480674, 19727057, 10350832

17716305, 12794305, 19289642, 14589750, 12583611, 14409183, 12646784

17767676, 16505333, 16175381, 14791477, 21151526, 21031414, 21031410

21031411, 21031412, 21031413, 12923168, 12617123, 13853654, 14123213

13582702, 12391034, 14393728, 13839336, 19638161, 13866822, 16306019

11063191, 14497307, 13839641, 13860201, 14774091, 12913474, 13910420

19769496, 13377816, 17082364, 16742095, 12401111, 12678920, 13624984

12656535, 20777150, 13036331, 13645917, 14158012, 13834436, 13742464

19537916, 13737746, 13853126, 13103913, 14467061, 12849688, 13080778

14523004, 19271438, 17050888, 13343438, 13783957, 12596444, 13849733

13503598, 12905053, 16992075, 18031683, 12985237, 12905058, 13742436

13742437, 13561951, 13742438, 17333198, 17333197, 13742433, 12585543

13916549, 17333199, 13742434, 9659614, 13742435, 12748538, 16344758

13588248, 17468141, 18436647, 16703112, 13834065, 16710324, 14301592

14469008, 16929165

-------------------------------------------------------------------------------

OPatch succeeded.

Post Patching steps:

Loading modified sqlfiles into the database.

cd $ORACLE_HOME/rdbms/admin

sqlplus / as sysdba

SQL> CONNECT / AS SYSDBA

SQL> STARTUP

SQL> @catbundle.sql psu apply

The catbundle.sql execution is reflected in the dba_registry_history view by a row associated with bundle series PSU.

For information about the catbundle.sql script, see My Oracle Support Document 605795.1 Introduction to Oracle Database catbundle.sql.

run utlrp.sql to re-validate INVALID objects.

cd $ORACLE_HOME/rdbms/admin

sqlplus /nolog

SQL> CONNECT / AS SYSDBA

SQL> @utlrp.sql

Confirm that patch has been applied successfully

col action_time for a40
col action for a15
col namespace for a15
col version for a15
col comments for a40
set pages 1000
set lines 170
select * from registry$history ;

_________________________________________________________________________________

Patch Rollback instructions provided in read-me document attached in the downloaded patch. Below are the steps.

Patch Deinstallation Instructions for a Non-RAC Environment

Follow these steps:

Verify that an $ORACLE_HOME/rdbms/admin/catbundle_PSU_<database SID>_ROLLBACK.sql file exists for each database associated with this ORACLE_HOME. If this is not the case, you must execute the steps in Section 3.3.2, "Loading Modified SQL Files into the Database" against the database before deinstalling the PSU.
Shut down all instances and listeners associated with the Oracle home that you are updating. For more information, see Oracle Database Administrator's Guide.
Run the OPatch utility specifying the rollback argument as follows.
```
opatch rollback -id 20760997
```

Patch Post-Deinstallation Instructions for a Non-RAC Environment

Start all database instances running from the Oracle home. (For more information, see Oracle Database Administrator's Guide.)
For each database instance running out of the ORACLE_HOME, connect to the database using SQL*Plus as SYSDBA and run the rollback script as follows:
```
cd $ORACLE_HOME/rdbms/admin
sqlplus /nolog
SQL> CONNECT / AS SYSDBA
SQL> STARTUP
SQL> @catbundle_PSU_<database SID>_ROLLBACK.sql
SQL> QUIT
```
If the OJVM PSU was applied for a previous PSU patch, you may see invalid Java classes after execution of the catbundle.sql script in the previous step. If this is the case, run utlrp.sql to re-validate these Java classes.
```
cd $ORACLE_HOME/rdbms/admin
sqlplus /nolog
SQL> CONNECT / AS SYSDBA
SQL> @utlrp.sql
```
Check the log file for any errors. The log file is found in $ORACLE_BASE/cfgtoollogs/catbundle and is named catbundle_PSU_<database SID>_ROLLBACK_<TIMESTAMP>.log where TIMESTAMP is of the form YYYYMMMDD_HH_MM_SS.
